- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- Asus
- Product Line
- Dual
- Product Type
- Graphic Card

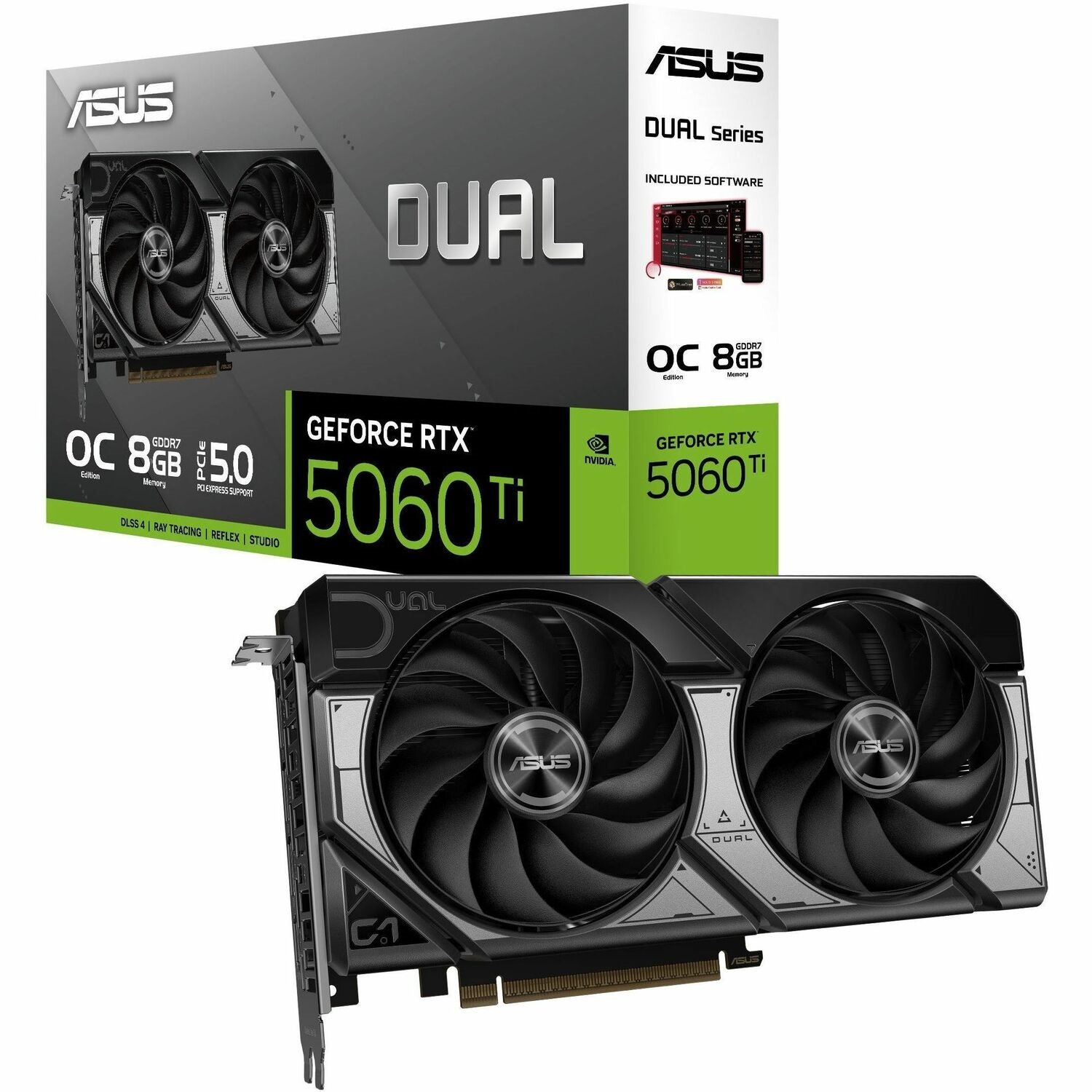

DUAL GEFORCE RTX™ 5060 Ti | Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
Cooling 2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
- Technical Information
- API Supported
- OpenGL 4.6
- Number of Monitors Supported
- 4
- Features
- Dual-fan Cooler
- Ray Tracing
- Maximum Digital Display Resolution
- 7680 x 4320
- CUDA Cores
- 4608
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- RTX 5060 Ti
- GPU Boost Clock
- 2.63 GHz
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- GDDR7
- Bus Width
- 128 bit
- Interfaces/Ports
- Host Interface
- PCI Express 5.0
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- Power Description
- Power Supply Wattage
- 550 W
- Power Connector
- 1x 8-pin
- Physical Characteristics
- Slot Space Required
- Triple
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 50 mm
- Width
- 120 mm
- Length
- 229 mm
- Miscellaneous
- Platform Supported
- PC
